Coil Winding Machines

Coil Winding Machines are essential equipment in transformer manufacturing, specifically used for winding the copper or aluminum wire into coils (primary and secondary windings). These machines ensure precision and uniformity in the winding process, which is crucial for transformer performance and efficiency. Here's a closer look at coil winding machines:

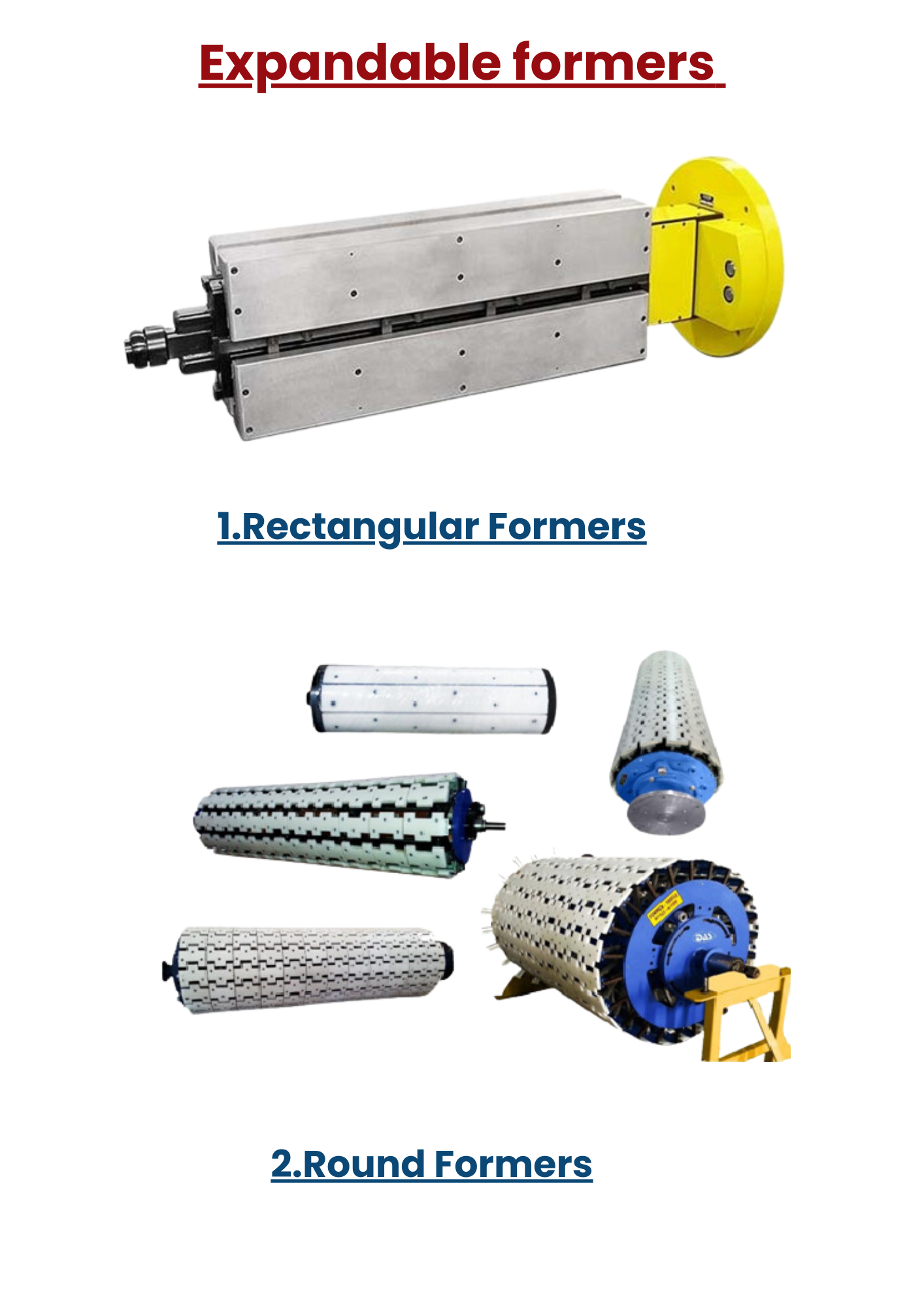

Expandable Formers

Expandable formers are mechanical devices designed to hold and support the wire during the winding process. These formers can be expanded or contracted based on the required coil size, making them highly versatile for different coil dimensions. After the winding process is complete, the former is expanded to release the wound coil.

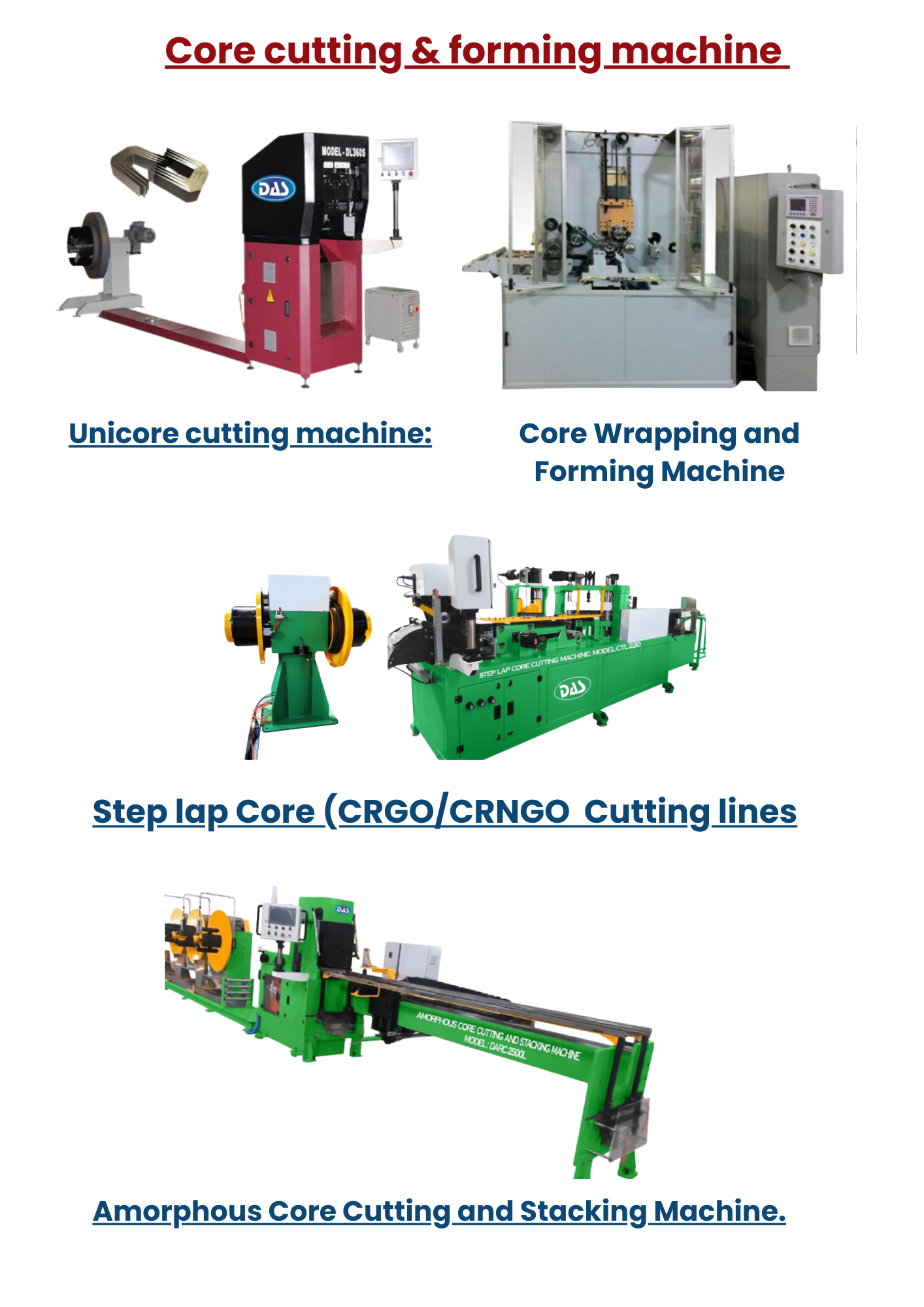

Core Cutting & Forming Machine

Core cutting and forming machines are used to cut thin, insulated steel sheets (called laminations) into precise shapes and sizes. These laminations are then stacked together to form the core of the transformer. The core is the magnetic path that directs the flux between the transformer’s primary and secondary windings.

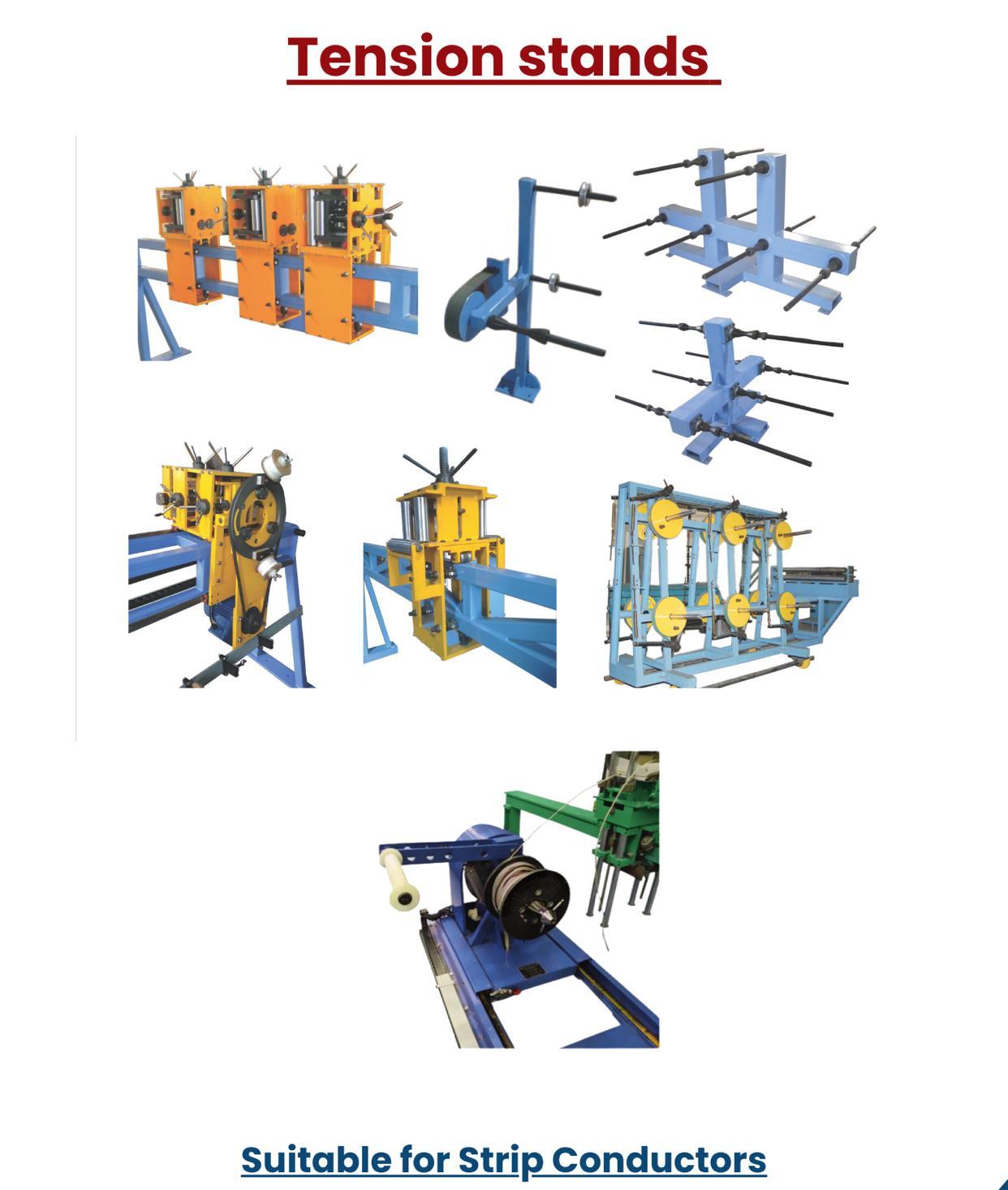

Tension Stands

Tension Stands are essential machines in the manufacturing process of transformers, electrical motors, and other wire-based products. These machines are primarily used to control and maintain consistent tension in the wire during various processes such as winding, drawing, or coating.

Insulation Preparation

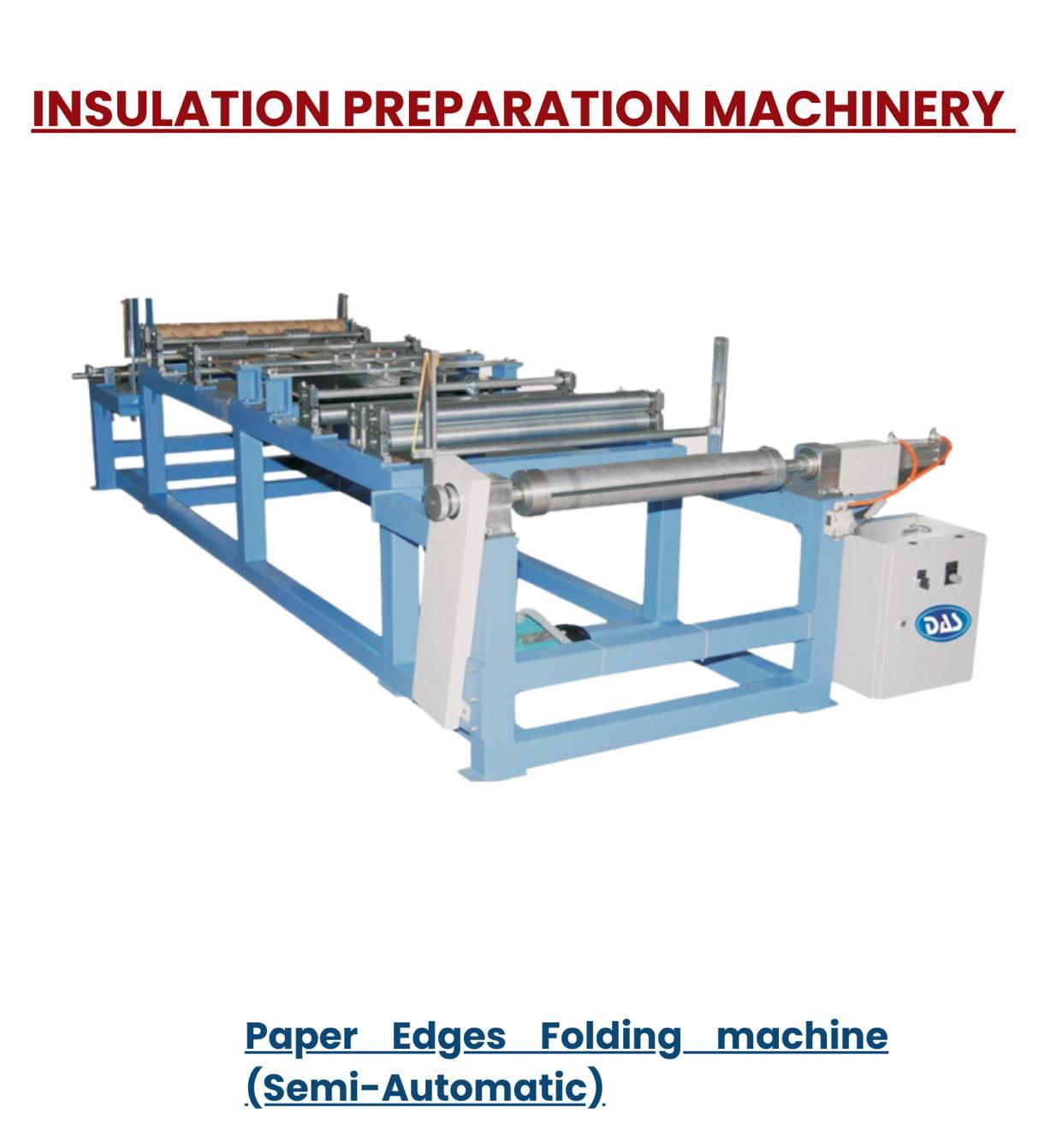

Insulation preparation machinery is designed to treat and apply insulating coatings, films, or layers to various electrical parts, such as transformer coils, windings, wires, and cores. These machines handle different types of insulating materials like varnishes, resins, enamel coatings, and other dielectric materials that prevent electrical current from flowing where it is not intended.

Condenser Bushing Winding Machine

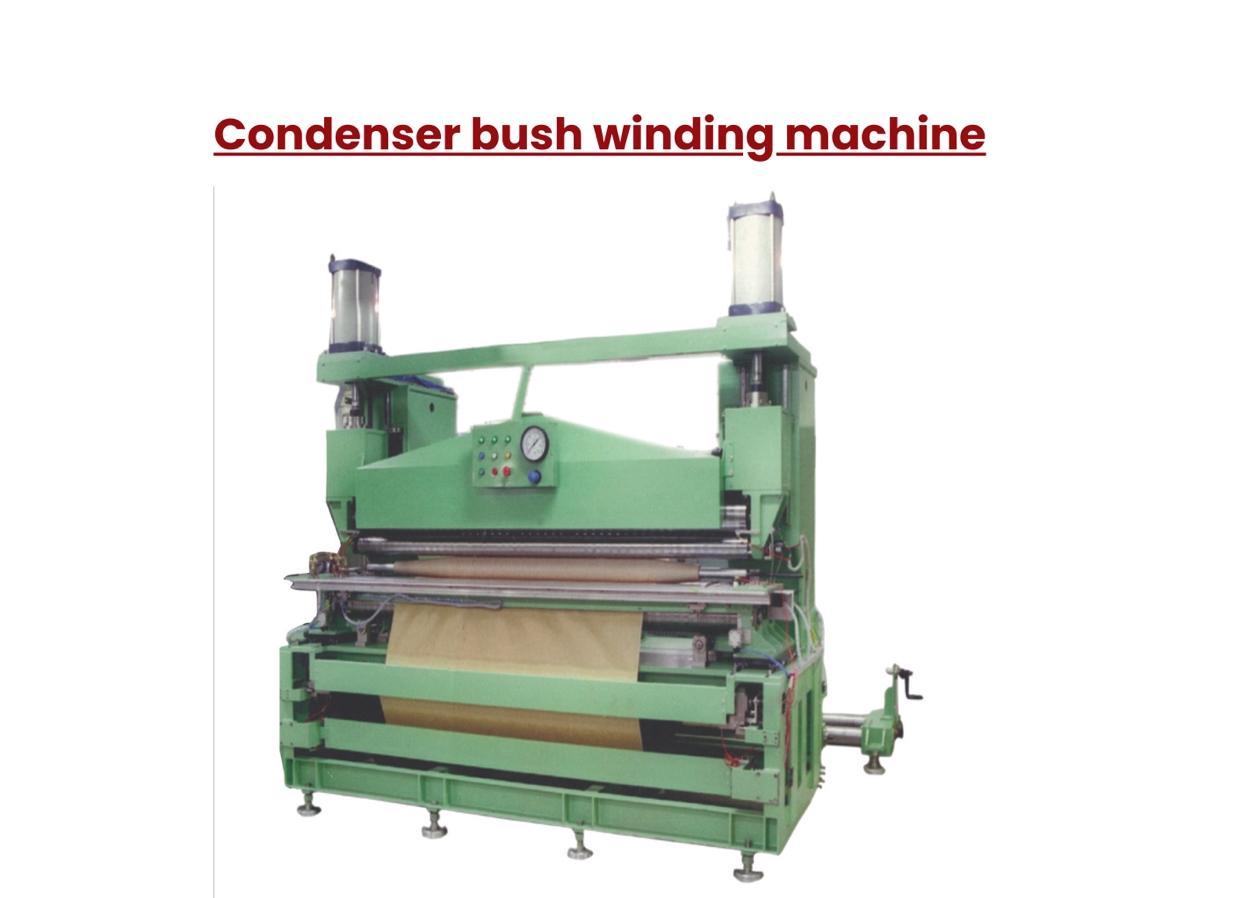

Condenser Bushing Winding Machine is a specialized machine used in the manufacturing of condenser bushings, which are essential components in electrical transformers and other high-voltage electrical equipment. Condenser bushings are used to insulate and support high-voltage conductors entering or leaving electrical equipment, while also maintaining the electrical integrity of the equipment.

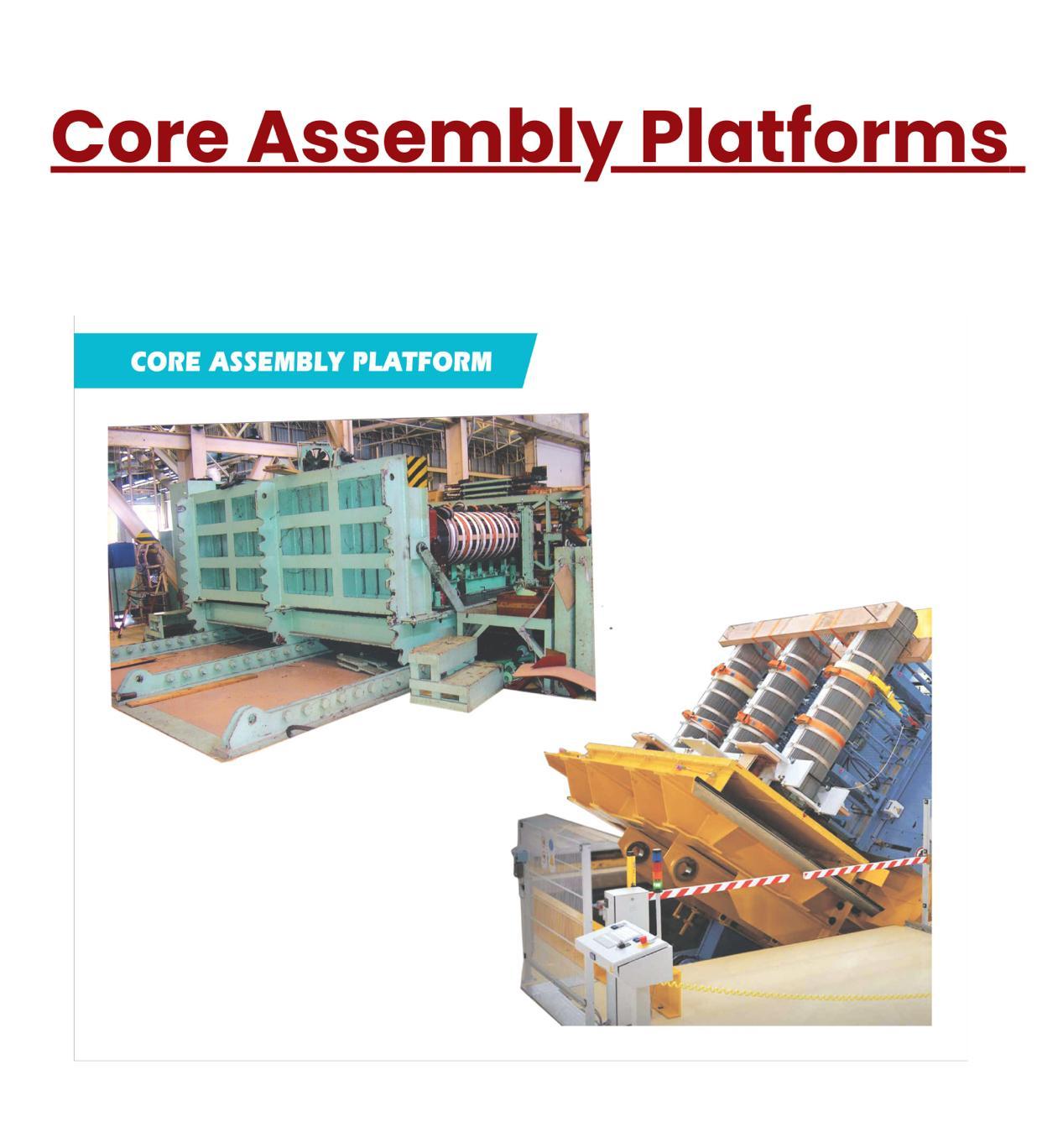

Core Assembly Platforms

Core assembly platforms are used to support the accurate stacking, positioning, and joining of transformer core laminations to form a magnetic core. These platforms provide an organized space for operators to assemble the core sheets, ensuring that the lamination stack is aligned correctly.

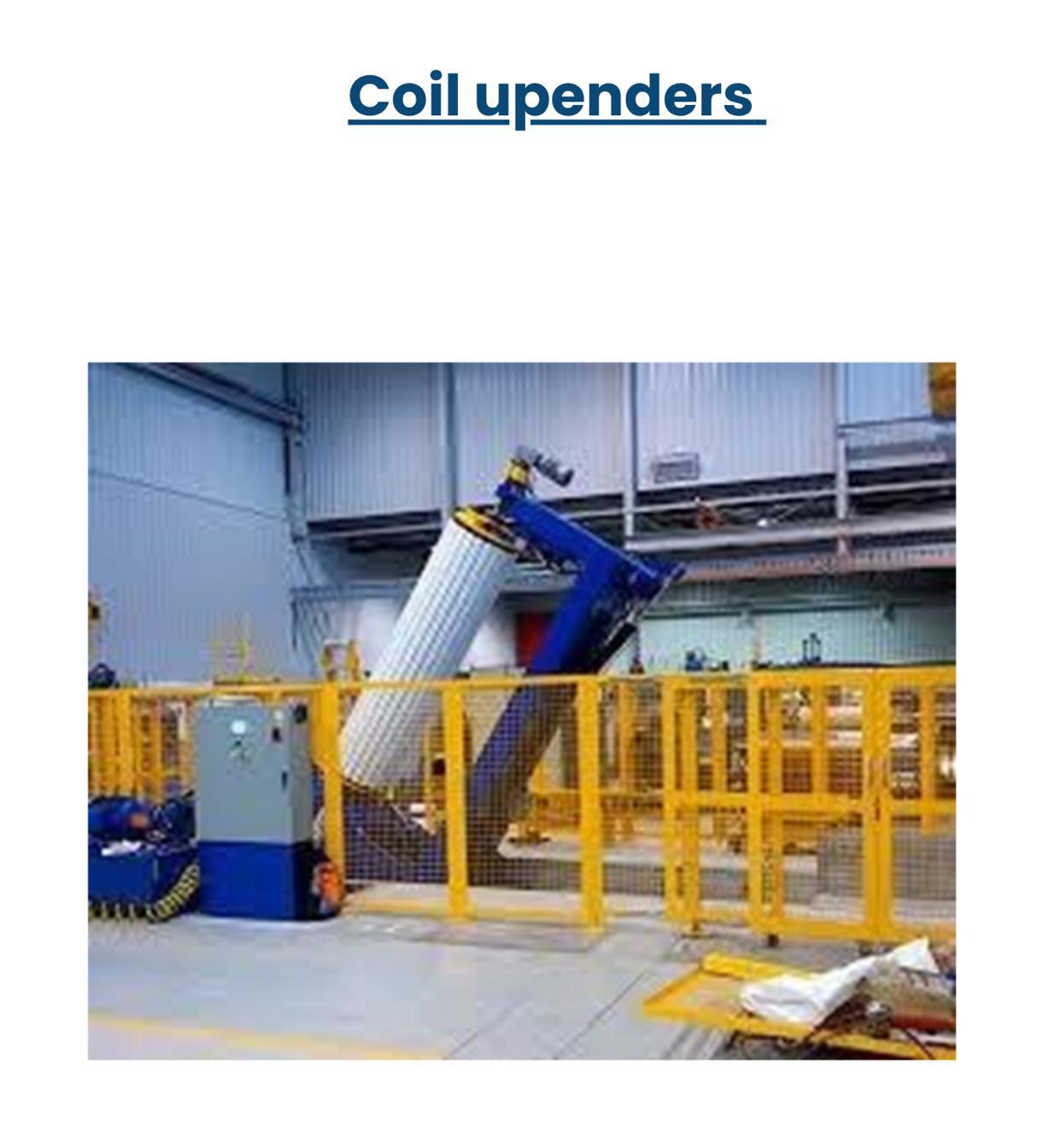

Coil Upenders

Coil Upenders are specialized machines used in manufacturing processes, especially in industries like transformer production, to handle and position heavy coils of wire, steel, or other materials. Their primary function is to rotate and lift large, heavy coils from a horizontal position to a vertical one (or vice versa) to facilitate further processing, such as winding, stacking, or assembly.

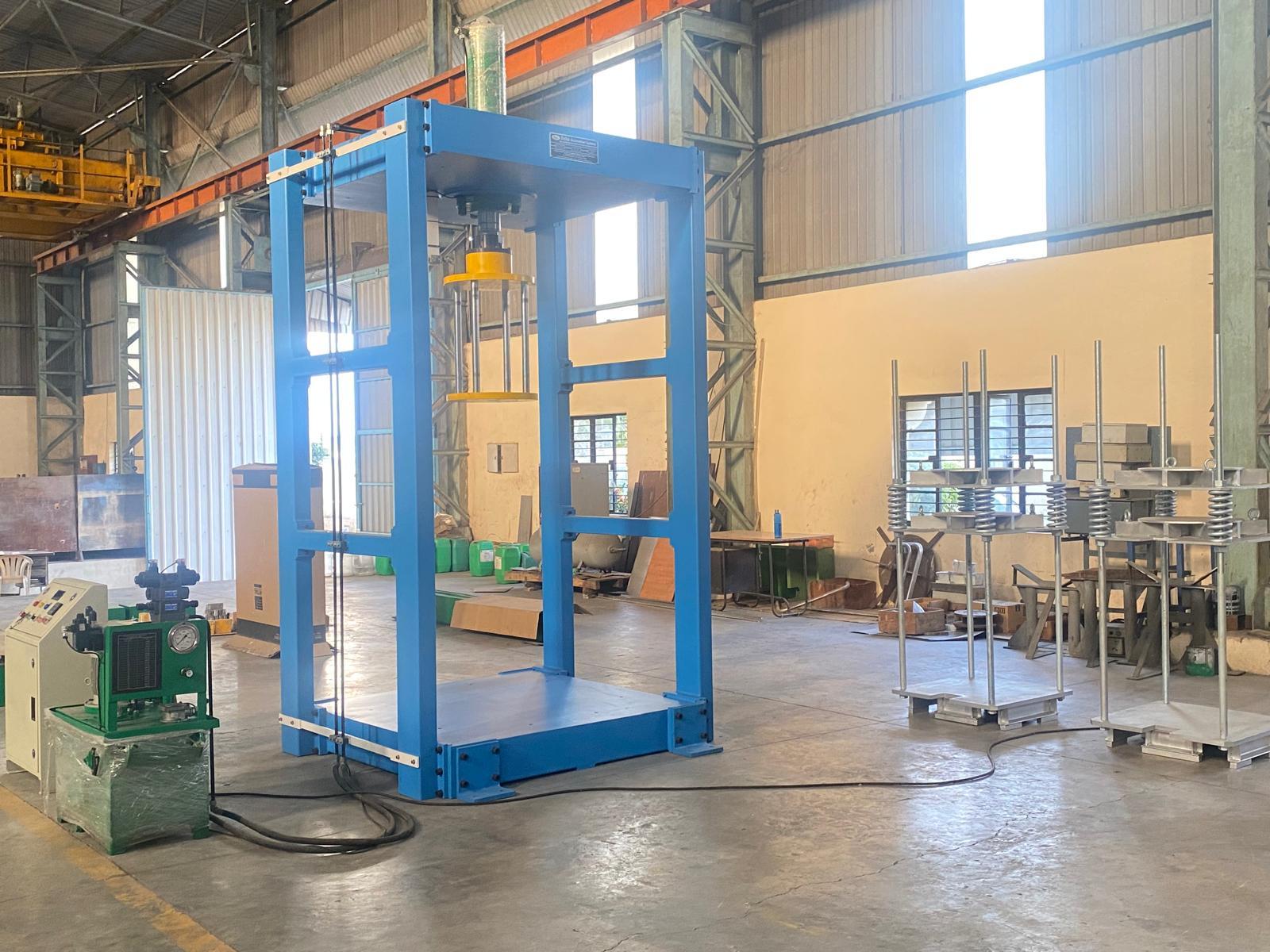

Coil Pressing Equipment

Coil Pressing Equipment is used in industries such as transformer manufacturing, electrical coil production, and similar sectors where coils need to be compacted, shaped, or processed under high pressure. The equipment is designed to compress coils, typically made from materials like copper or aluminum wire, into a compact and uniform shape.

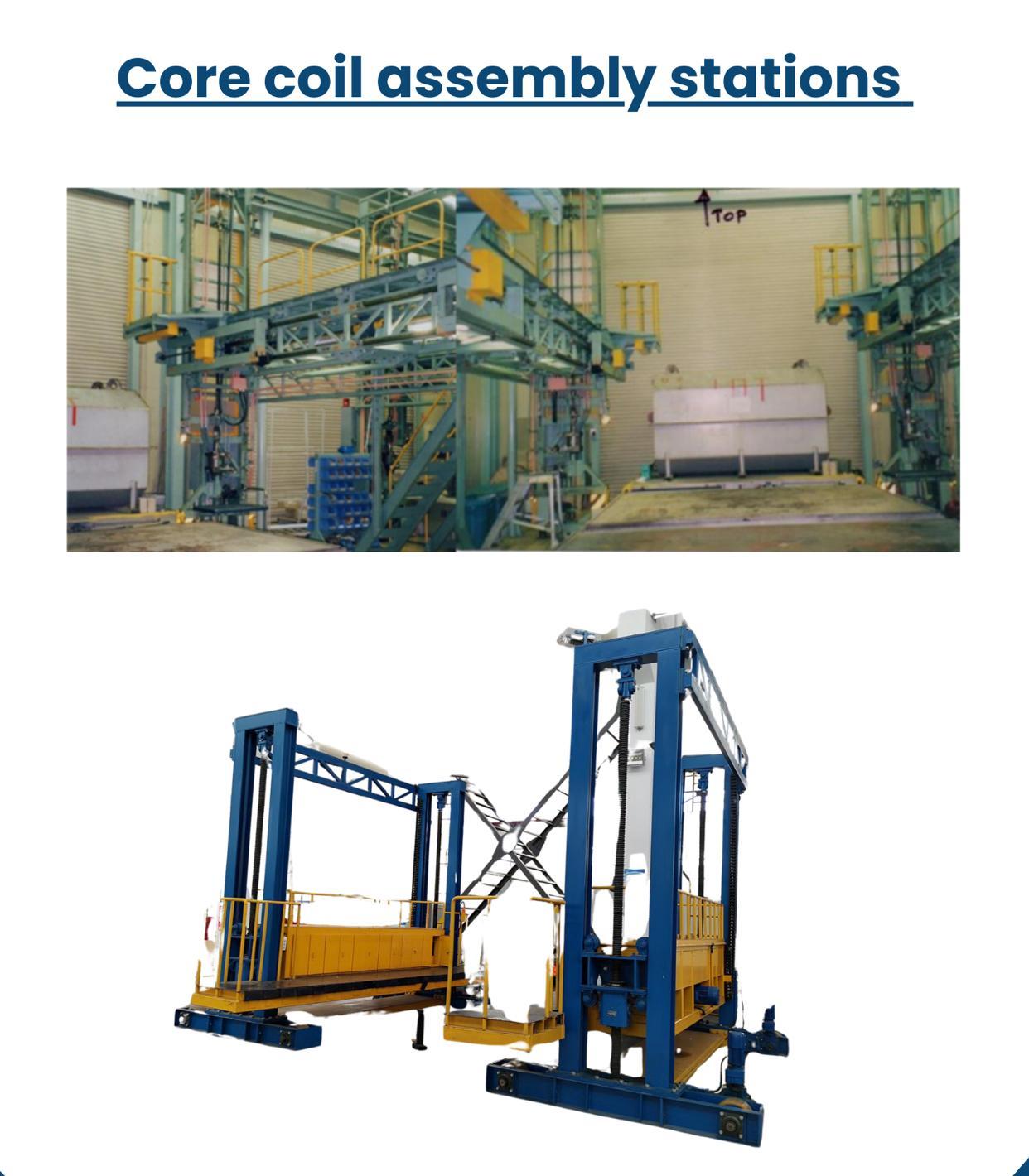

Core Coil Assembly Platforms

Core Coil Assembly Platforms are specialized workstations used in the transformer manufacturing process for assembling the core and coils into a complete unit. These platforms are designed to handle the delicate and often heavy components involved in transformer production, ensuring that the assembly is precise, secure, and efficient.

Radiator Manufacturing Lines

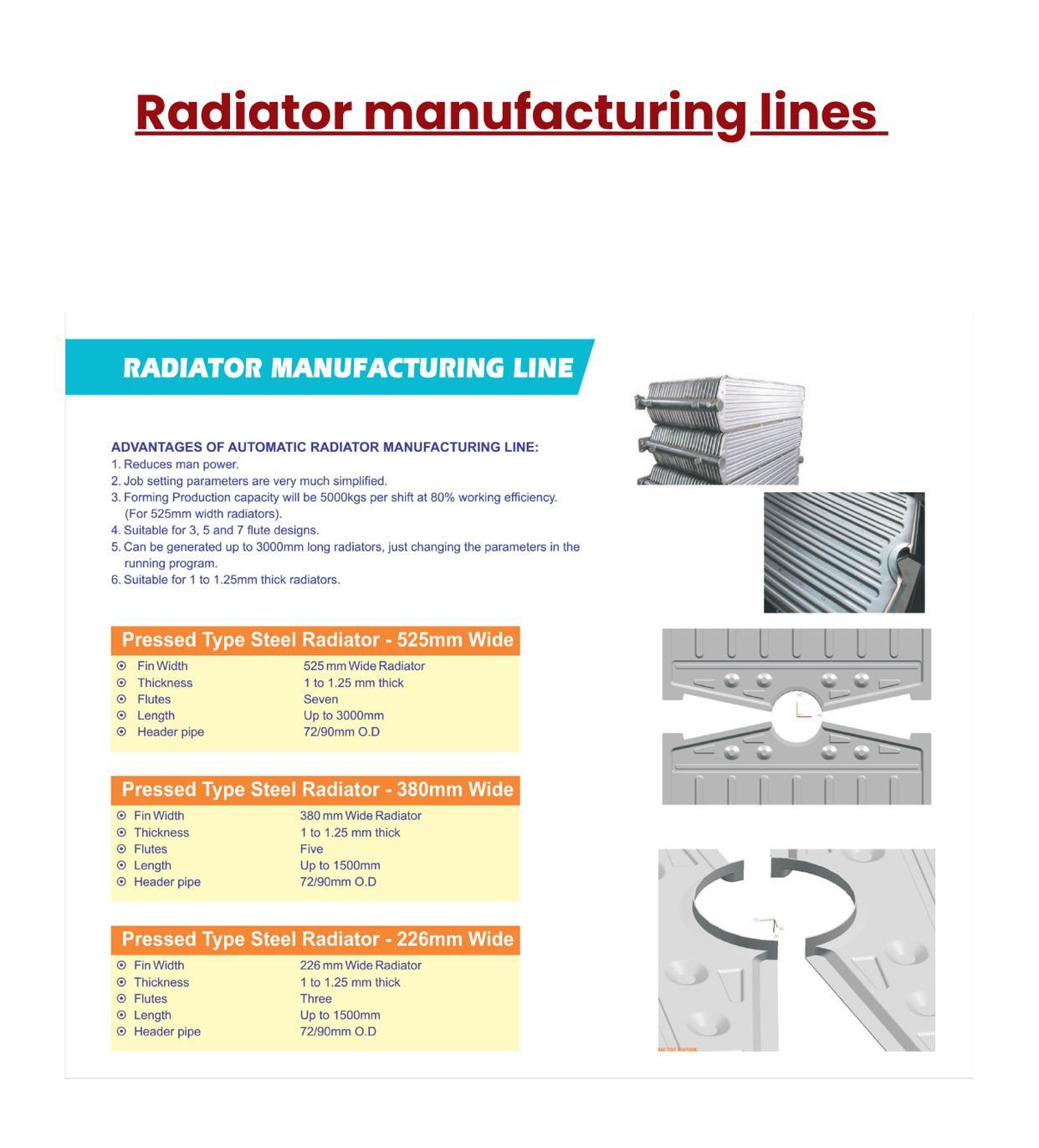

A radiator manufacturing line consists of a series of interconnected machines and systems that work in unison to produce transformer radiators. The process begins with raw materials, such as sheets of metal (typically aluminum or steel), which are shaped and welded into the required radiator design.

Special Tools and Equipment for Transformers

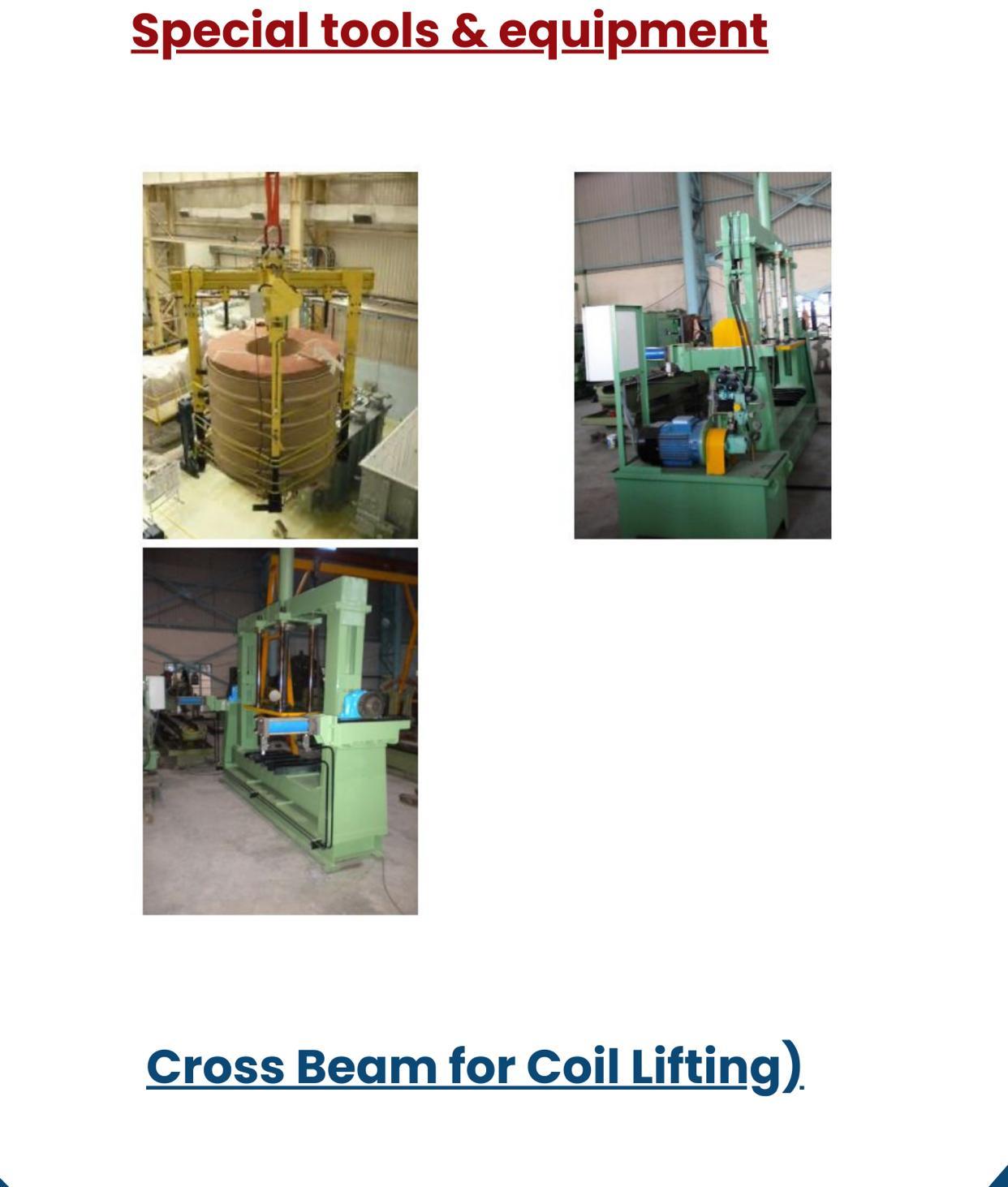

Special Tools and Equipment for Transformers are essential for the efficient manufacturing, maintenance, and repair of transformers. These tools are designed to handle specific tasks that ensure the safe and precise assembly, operation, and troubleshooting of transformers
